SmartFog Commercial Wall Mount – Handheld Humidifier and Fogging Disinfection System 3 GPH

A Powerful Wall-Mount Direct Space Industrial-Grade Atomizer Humidifier and Fogging Room Disinfection System that Provides Fast-Evaporating Dry Fog for Maximum Humidification and Antibacterial Action with No Misting or Surface Wetting, No Puddles, Safe Around Electronics, Printing Rooms, etc with Over 24 lbs (3 Gallon) Per Hour Output Capacity, Standard 110v Power, Can be Used as a Handheld Room Sanitizer, All at The Best Possible Cheap Discount Online Sales Price with Free Shipping. Top-Rated for Cannabis Growing Rooms, Testing Rooms and Warehouses.

Uses & Benefits:

• Portable Commercial Wall Mount Humidifier and Fogging Room Disinfection System
• Practical Room Size: 3000 square feet per unit (24,000 cubic feet)
• Generate and maintain any level of required humidity from 1% to 99% without wetting
• Can be used as a handheld / portable fogging disinfection system by choosing handle / hose option below
• Accurate, consistent humidity throughout the room ±1%
• Consistent, super-fast evaporating 4.2 micron droplet size
• Elimination of mold, bacteria & dust
• No drains, no pumps or fans required
• No wet-spots – Guaranteed
• No white mineral spots – not ultrasonic
• No drains, pumps or fans needed
• Maintenance free-no nozzle replacements

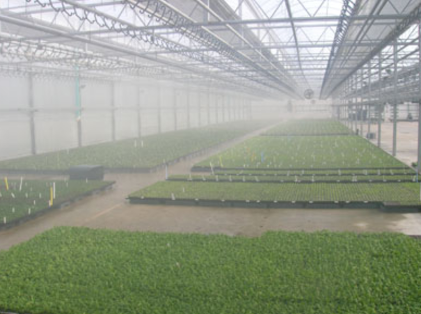

• Best for: Electronics Manufacturing – Laboratories – Printing Rooms -Textile Manufacturing – Large Walk In Cigar Humidors – Tobacco Storage – Wineries – Dog Boarding Facilities – Veterinary Facilities – Mold Remediation – Greenhouses & More!

• Consistent 4.2 Micron Droplet (Smallest, most consistent droplet size available today)
• 24/7 Automated Operation
• Powerful 24 lbs of Moisture Per Hour!
• Maintenance-free–no nozzles to replace
• Uses common compressed air – 2-4 CFM at 100 PSI
• Disinfect/sanitize a room with any water-dissolving disinfectant, hydrogen peroxide, etc.
• Advanced Smart Fog AirNet Technology (for Equal droplet spacing)
• Cold Fog (No condensation)
• Works at all temperatures (30°F-150°F)
• Durable non-clogging system.
• Includes 1 PB1 – Control Center ( 1 Zone ), 1 CPLC1 – Intelligent Controller ( 1 Zone ),
• Includes 1 S2V – Relative Humidity Sensor V Series (+/- 2%)
• Optional ZeroTDS Water Filtration System
• 1 Year Warranty

• Type: Mobile Spot or Room Humidifier System
• Droplet Size: 4.2 Microns
• Power: 110VAC 60hz
• Watts: 0.4 kW/hr
• Water: 3.0 Gallons Per Hour, 1-10 psi
• Dimensions: 21″ W x 14.5″D x 30″ T
• Weight: 64 lbs
• Compressed Air Requirements: 2-`4 CFM at 100 PSI
• Hand-Fill: No
• Water Source: Water Line Hookup, Tap Water OK
• Power cord length: 5 ft
• Lead time: 2-3 business days

This System Includes:

• 1 ES100-2WM – Direct Space Wall Mount Humidifier
• 1 AF1000 – Air Filter Set 1000 L/min [35 cfm]
• 1 PFK – Pipe and Fittings Kit

Installation / Operation Requirements (Not Included)

• Air Compressor–Screw or Piston Compressor or Source of Compressed Air with airflow at 3 CFM (72 LPM ) @ 110 psi (7 Bar)
• 120-240VAC electrical supply at CPLC Controller
• Water supply, at minimum pressure of 10 psi (3 Bar) with Max flow rate: 2 GPH (6 LPH)

Optional Items:

• ZeroTDS Water Filtration System
• Injection Kit for Disinfectants–only needed for concentrated disinfectants; if using pre-mixed disinfecting solution, unit pulls directly from bottle.
