Diversitech Typhoon WX-5000 Wet Dust Collector
Diversitech Typhoon WX-5000 Wet Dust Collector - Image 2
Diversitech Typhoon WX-5000 Wet Dust Collector - Image 3
Diversitech Typhoon WX-5000 Wet Dust Collector - Image 4
Diversitech Typhoon WX-5000 Wet Dust Collector - Image 5
Diversitech Typhoon WX-5000 Wet Dust Collector - Image 6
Diversitech Typhoon WX-5000 Wet Dust Collector - Image 7
Diversitech Typhoon WX-5000 Wet Dust Collector - Image 8
Diversitech Typhoon WX-5000 Wet Dust Collector - Image 9

Diversitech Typhoon WX-5000 Wet Dust Collector

Original price was: $35,395.00.Current price is: $29,996.00.

Add Dual HEPA Module with Frame and Thermo Sensor?
Add Strainer System?
Add Sludge Vac System?
SKU: 10012049 Categories: , , ,

Description

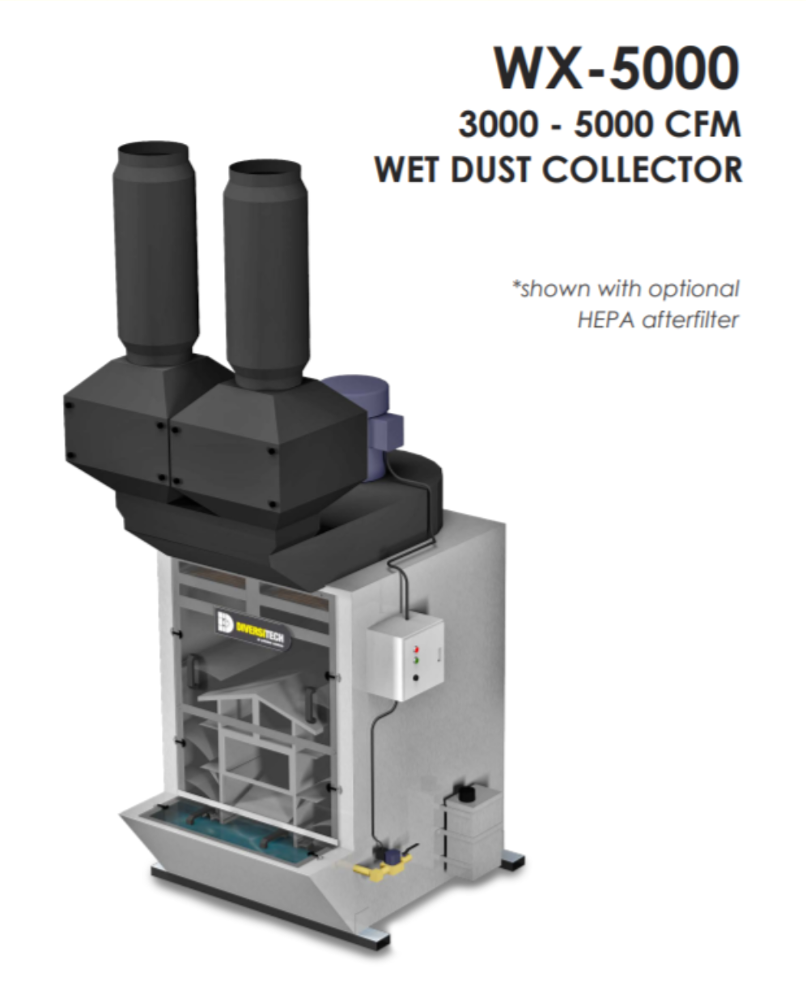

Diversitech Typhoon WX-5000 Wet Dust Collector

A Powerful Wet Dust Collection System Approved for Flammable and Explosive Dust Removal Applications such as Aluminum, Magnesium, Titanium, Sugars, Pectins and Other Combustible Powders, with 5000 CFM Airflow, Stainless Steel Construction and 5 Year Warranty, all at The Best Cheap Discount Online Sales Price with Free Ground Shipping. A Top Rated Wet Dust Collector for Food Manufacturing, Cosmetics and Metal Fabrication.

Uses & Benefits:
  • Industrial – Commercial Wet Dust Collection System
  • Powerful Delivered 5000 CFM
  • Designed for Control of Flammable or Explosive Dust such as Magnesium, Titanium and Aluminum, Tantalum, Niobium and Others
  • Low-Maintenance
  • Optional Self-Cleaning Strainer System Available
  • Captures-at-Source for Cleaner Air
  • Automatically adds water as needed
  • Complies with NFPA guidelines for Combustible Dust
  • Best For:  Grinding & Deburring, Sanding & Finishing, Rubber Grinding, Aircraft MRO, Powder Mixing, Polishing, Buffing
Features:

  •  10.0 HP TEFC motor producing 5000 CFM airflow
  •  NEMA 4X Control Panel with LCD Display
  •  Anti-corrosion Stainless Steel #304 Construction
  •  Auto-Fill Water Control System with Adaptive Water Level Control
  •  Ultrasonic Water Level Sensor
  •  Safety Overflow Drain Included
  •  High-Efficiency Non-Sparking Blower Included
  •  Dual Silencer Stacks Included
  •  Transparent Easy Access Lexan Doors
  •  Low Cost Mist-Eliminator After Filters
  • Top-Rated 5 Year Diversitech Warranty

Options:

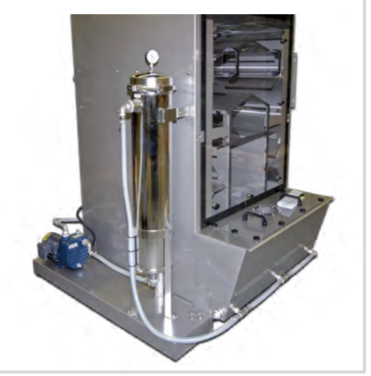

  • Optional Self-Cleaning Strainer System

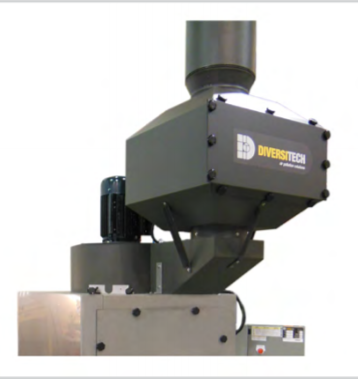

  • Dual HEPA After-Filter Module
  • Downdraft Table–connects to WX-5000 (call for details)
  • Suction VAC Unit for Clean Up (call for details)

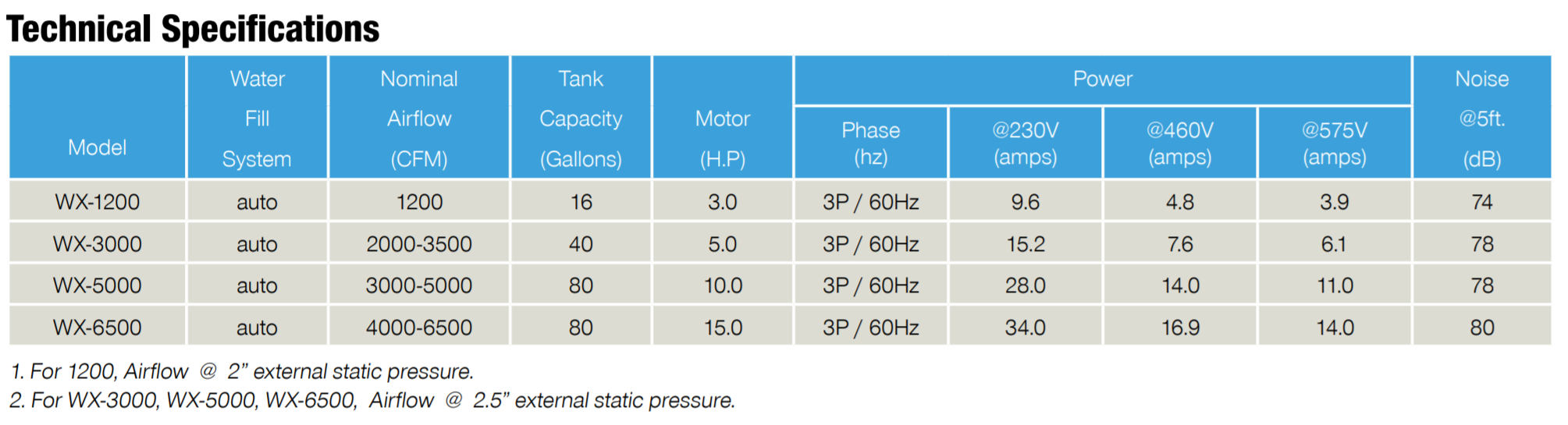

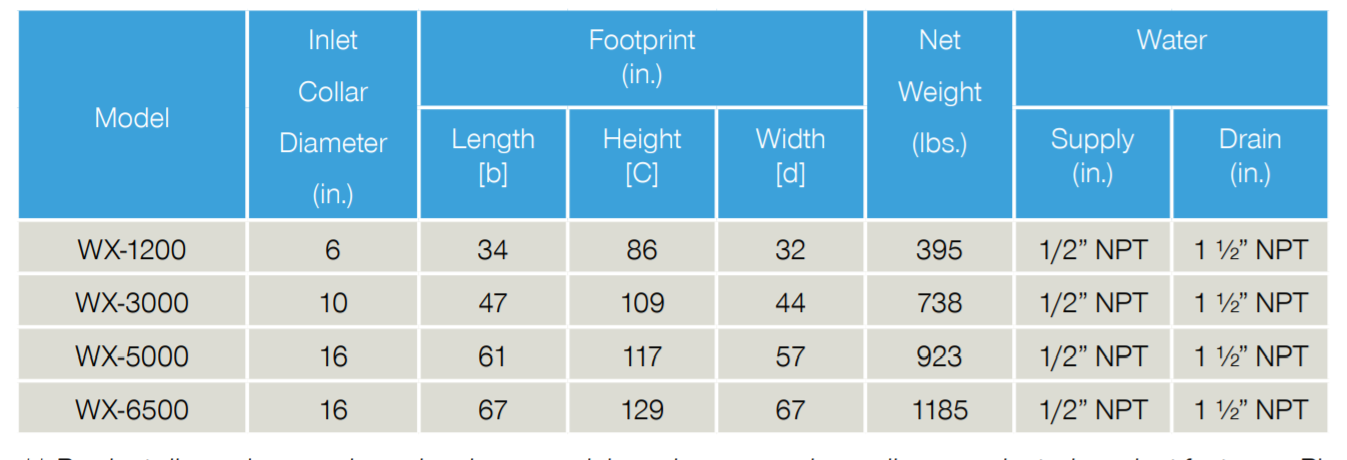

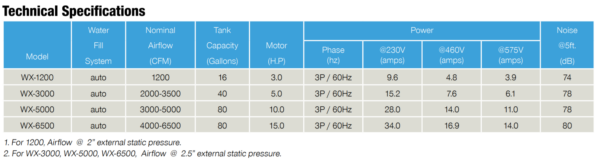

Specifications:

  • Motor        10.0 HP 3P/60Hz TEFC
  • Power       230v/480v/560v 3P / 60hz
  • Amps        22.8 / 11.4 / 9.6
  • Airflow       5000 CFM
  • Control       On / Off
  • Intake Duct   Back, 16″ Diameter
  • Output Duct  Dual 4″ Diameter
  • Unit Weight    923 lbs
  • Dimensions    61″ L x 57″ W x 117” High
  • Water: 1/2 inch NPT Supply and 1/2″ NPT Drain Required
  • Certifications: CSA / UL

Powerful Flammable and Explosive Dust Removal & Control

Flammable and explosive dust control in manufacturing environments is vital to employee safety and the longevity of the business. Using typical dry dust collectors for grinding, deburring and sanding of magnesium, aluminum, titanium, tantalum, niobium or other combustible metals or materials can quickly cause an explosion when the dust comes in contact with sparks, non-shielded electrical components, etc. The solution is to use a high quality wet dust collection system designed to handle flammable and explosive / combustible dust.

The Diversitech Typhoon WX-5000 stainless steel wet dust collector quickly extracts metal and other combustible contaminants from plant or workshop air, or directly from CNC machines, grinders, sanders, etc via ducted connections. The interior of the wet collector contains strategically located baffles to wash water over airborne dust and redirect it into the water tank below. All Diversitech wet dust collectors are fabricated using stainless steel to ensure the equipment will last over the long term.

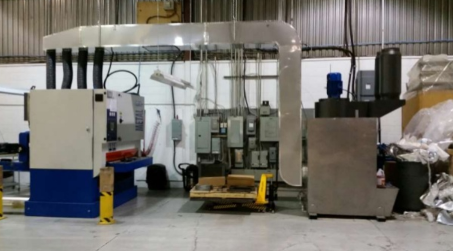

The collector can be ducted directly into an industrial machine such as a widebelt sander to extract combustible dust at its source. Diversitech’s Wet collectors are 99% efficient with particles 3 microns and larger. When dealing with sub-micron particulate, a HEPA after-filter is required to achieve the correct filtration efficiency.  The HEPA after-filter can be added below if this is needed for your application.

Diversitech’s wet dust collectors are intended for use with volatile materials including explosive metal dust commonly found in the aerospace industry. Many machine shops and fabrications shops producing steel, aluminum and titanium parts in the same workspace are exposing their workers and facility to a high risk environment. In order to operate on ferrous and non-ferrous metals like steel and aluminum parts in the same workspace, a wet dust collector is essential to ensure the safe capture and removal of explosive dust.

Order your Diversitech Typhoon WX-5000 Wet Dust Collection System here at a discount online sales price and enjoy effective, money-saving combustible dust removal and control in your commercial manufacturing facility, industrial shop, or anywhere you need it!

Save Money Shopping Online, and Don’t Get Ripped Off

There are not many official online retailers of Diversitech quality commercial air filtration products and unfortunately the internet is full of scams. As a general rule of thumb, if the deal seems too good to be true, it probably is. Cheap cut rate online deals often end up being a used or refurbished unit, which do not come with Diversitech top rated warranties. Or even worse, you may end up buying a cheap discount air cleaner that doesn’t have the energy efficiency, features or warranties provided by top-rated Diversitech air filtration systems.

Why Buying From Us is Better Than Buying Direct!

Our innovative partnership with Diversitech allows us to ship directly from their warehouse, which cuts out the middle man and eliminates the high operating costs of traditional brick and mortar big box stores. These savings get passed directly to you, allowing us to offer brand new allergy and asthma symptom-eliminating Diversitech air purifiers and filters at the best possible everyday cheap discount online sales prices. And buying from us is definitely better than direct–if you buy direct, you’ll have to pay shipping. Buying from us, you always get fast free ground shipping as our thanks to you for shopping with us.

If you have any questions give us a call or send us an email and one of commercial indoor air purification experts will be happy to help!
