• 7,500 cfm @ 10″ w.g (5” w.g available external static pressure). 20HP [230-460v/3/50] TEFC premium efficiency motor.
• 1 Top Mount Blower, 20 HP
• Filtration: 9 Spunbond Polyester filter cartridges, 48” high, MERV 12, Pre-Filter MERV 7
• Discharge: legs with hopper (Includes: drum with blast gate)
• Construction: 10 ga. Steel frame, 12 ga. steel for door, legs with hopper, inlet and panels
• Finish: Powder Coat, Diversitech 2-tone Grey
• High Cross Flow Inlet: Inlet channel baffles protect filters from larger dust particles.
• Automatic Filter Cleaning: Automatic back-flush cleaning system with periodic compressed air pulses.
• Filter access: High-efficiency cartridge change-out system with quick-open access door(s).
• Flanged inlet, flanged discharge, quick open access door, drain with plug, steel motor base and motor mounting
• Lead Time: 6 weeks from order date
• 2 Year Warranty

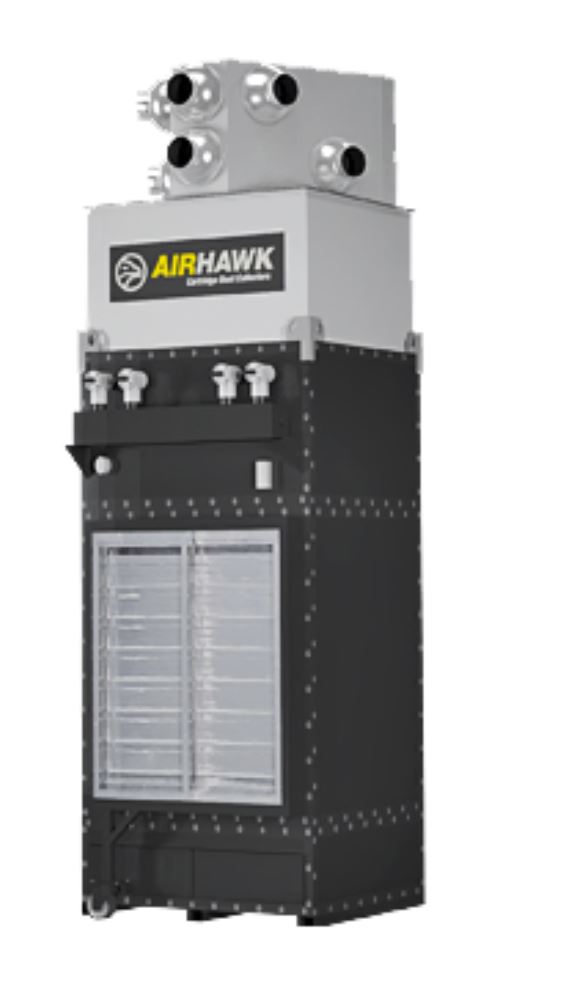

Diversitech’s Air Hawk ambient commercial shop air cleaning system is designed to collect and sequester dust, smoke, and other airborne particulates. The Air HawkTM dust collector and fume eater forces dirty workshop air through high-efficiency NanoFiber filters, and returns clean air back into the facility. This helps you avoid exhausting heated or cooled air outside, and keeps energy costs in line.

The powerful ambient floor standing Air Hawk AH-9 air purification system includes a self-cleaning cartridge filter system and can be fitted with a hopper and dust collection drum, making it the lowest maintenance large ambient air cleaner in the industry. Available with wall-mount or ceiling mount, and with optional remote mounted controls, the  top-rated low maintenance cost Air Hawk particle removal and  fume elimination system is perfect for any application where capture-at-source isn’t practical.

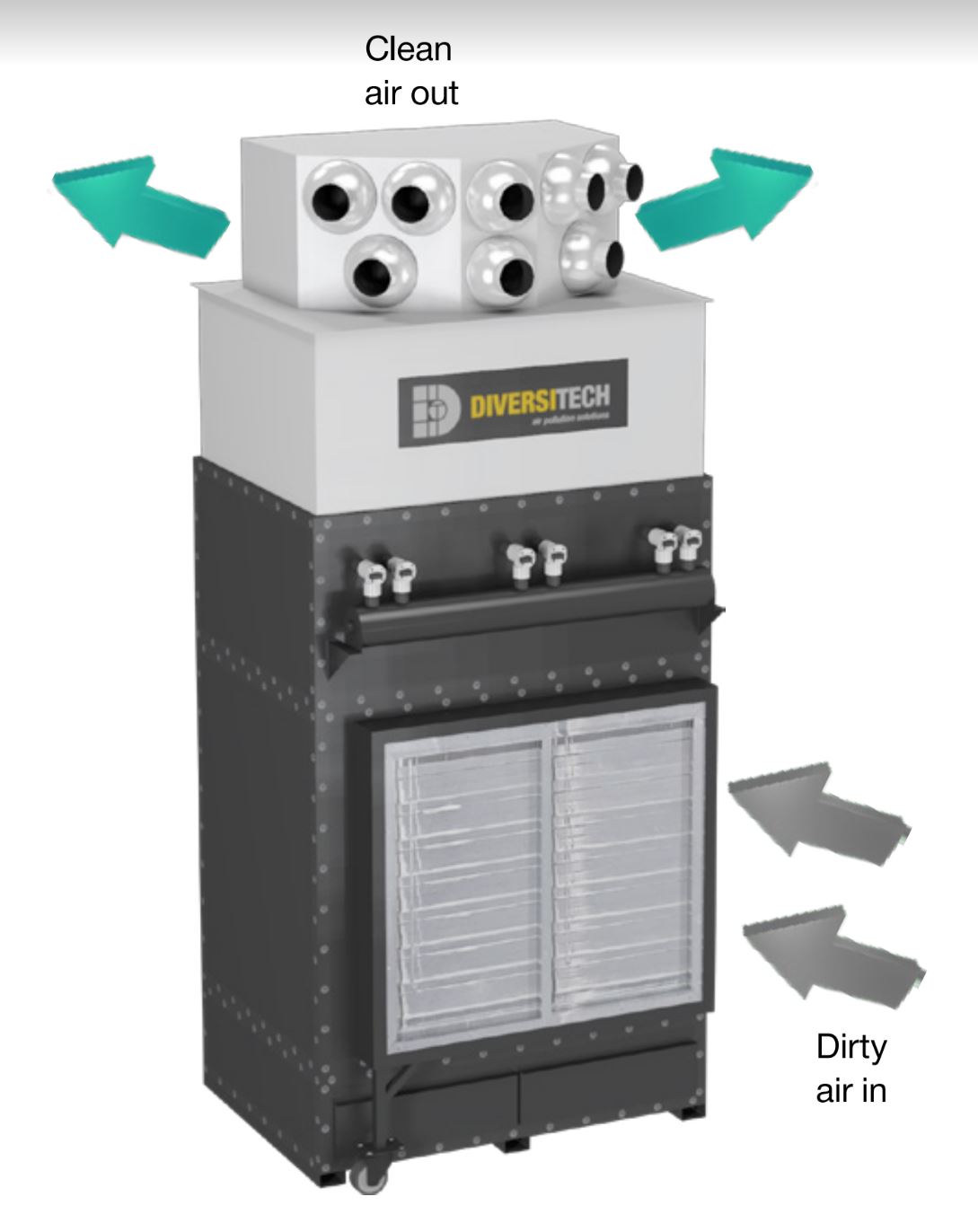

Air Hawk self-cleaning workshop air cleaners pull air through a louvered inlet on the side of the unit into the primary filters. The unit contains an industrial grade MERV 12 nanofiber filter cartridges with a reverse pulse cleaning system which pulses the accumulated dust into a drawer below. Pulses one filter at a time resulting in a higher cleaning efficiency, thus prolonging filter life. An available hopper drum lid kit allows for the collection and disposal of the accumulated debris.

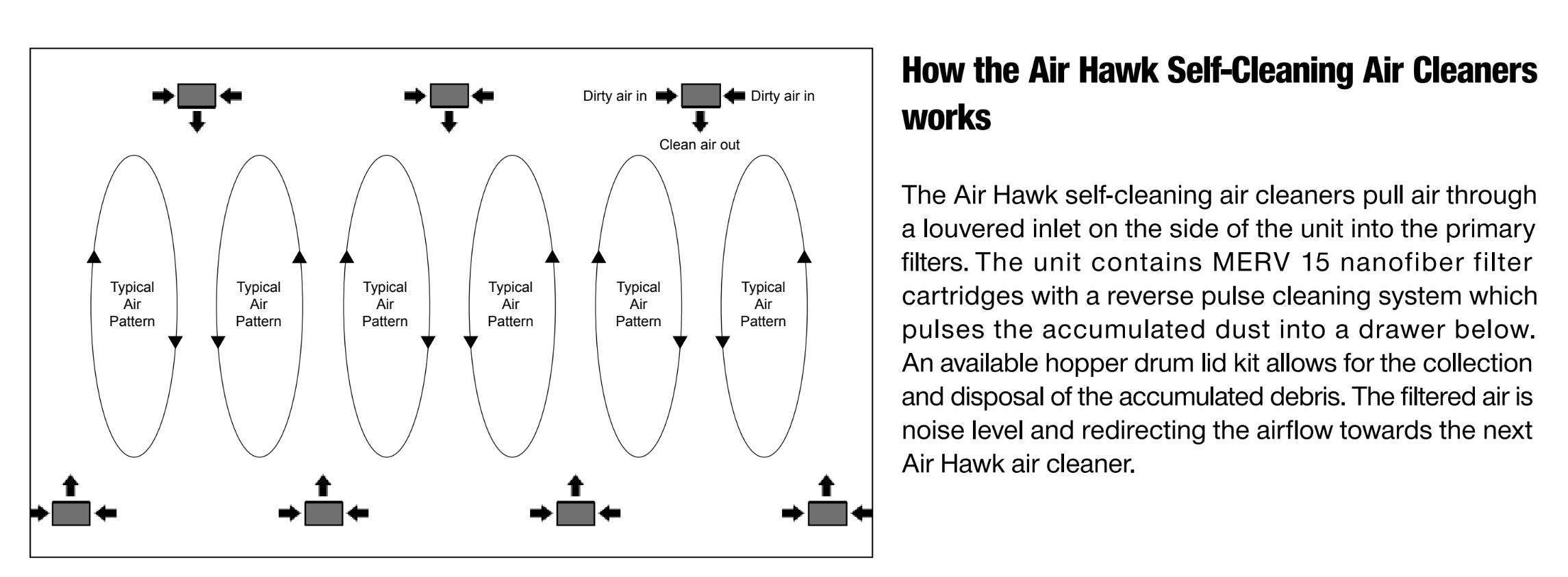

The filtered purified clean air exits the AirHawk at nose level (when on the ground) and output ducts redirect the airflow towards the next Air Hawk air cleaner when used in series in large rooms, warehouses, etc. Perfect applications for the AirHawk include: Welding smoke & fumes,  Grinding, buffing & polishing dust,  Grinding composites and plastics, Handling of dry powders,  Packaging, blending or weighing, Wood sawing sanding or finishing, Oil mist & smoke from machining and many more.
