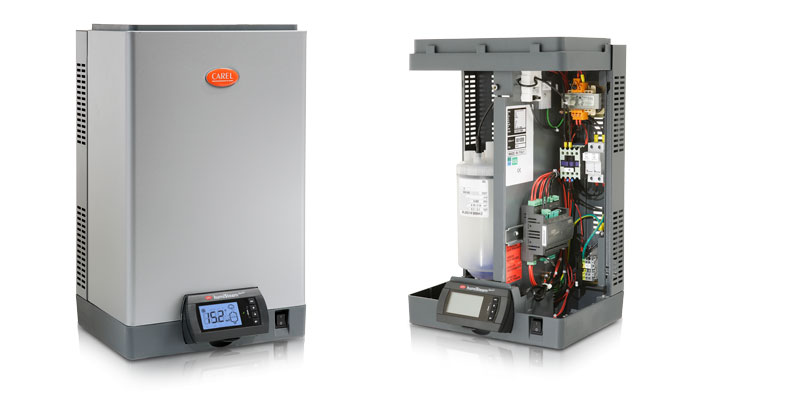

Carel UE 130 HumiSteam Hot Steam Commercial Humidifier System
Carel UE 130 HumiSteam Hot Steam Commercial Humidifier System - Image 2
Carel UE 130 HumiSteam Hot Steam Commercial Humidifier System - Image 3

Carel UE 130 HumiSteam Hot Steam Commercial Humidifier System

$17,900.00

SKU: CARELUEX130 Categories: , , , , , ,

Description

Carel UE 130 HumiSteam Hot Steam Commercial Humidifier System

Humidify Almost Any Medium to Large Commercial Space with this Amazing Hot Steam Humidification System! This Powerful Industrial Grade Warm Mist Air Moisturizer Machine can be Duct Mounted or Floor Standing for Single Room Distribution. This High Quality Unit is Low Maintenance, Uses Cheap Tap Water, and Provides Adjustable Germ-Free Humidity from 1 to 286 lbs Per Hour of Moisture. Perfect for Homes, Offices, Industrial Facilities, Hot Yoga Studios, and More. The Carel UE 130 HumiSteam Hot Mist Commercial Humidifier Machine is on Sale at our Top-Rated and Affordable Air Moisturizers Store at the Best Possible Cheap Discount Online Sales Price with Free Shipping!

UE Humisteam Hot Mist Commercial Grade Humidifier. Perfect for Offices, Homes, Industrial Facilities & More

Carel’s best hot steam air moisturizer unit offers 1-286 lb/hr of clean humidity for industrial warehouses, large rooms-offices, commercial shops, walk in cigar humidors, wine cellars, hot Yoga studios and more.

Features and Benefits:

  • Adjustable warm mist humidity from 1 to 286 lbs per hour
  • Duct Mount or In-Room Distribution
  • Uses Cheap Tap Water–no water filtration system required.
  • Patented AFS system (Anti Foaming System): detects foam to prevent droplets of water being carried by the steam
  • Cylinders with galvanized electrodes and anti-scale filter at bottom, openable cylinders also available
  • Steam production with continuous modulation from 20% to maximum rating
  • Built-in conductivity sensor and control software to optimise energy efficiency and maintenance costs, with constant performance throughout cylinder life.
  • Automatic water drain after 3 days of inactivity

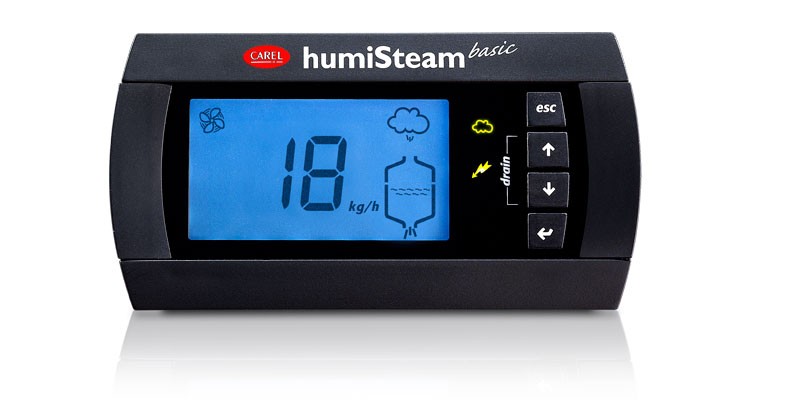

  • Easy operation: large user-friendly graphic LCD with detailed information.
  • Performance: quick start-up and wide range of feedwater conductivity.
  • Reliability: modulating limit probe for maximum safety in AHU/duct
The HumiSteam hot mist antibacterial, antiviral, and antimicrobial humidifier immersed electrode humidifier is the essence of CAREL’s extensive experience in the field of steam humidification, and represents the most rational choice for a wide variety of applications.  One of its main strengths is the fact that it operates on mains or tap water, with the software able to adjust operation automatically based on the feedwater characteristics, such as hardness, etc. The top-rated HumiSteam naturally provides clean, germ, bacteria, and virus free moisture without the need for a separate water filtration system.
The X-Plus Controller
While other controllers are available, the X-Plus controller is one of the most versatile. The HumiSteam “X” version humidifiers come with a built-in controller, featuring a graphic display and keypad for programming and managing operation. The following operating modes are available:
  • ON/OFF with external humidistat;
  • Proportional with external voltage or current signal;
  • Proportional with external signal plus safety limitation using a probe in the duct;
  • Modulating based on set point and humidity probe reading;
  • Modulating based on point, humidity probe reading and limit probe reading in the duct;
  • Modulating based on set point and outside temperature probe reading (e.g. steam baths);
  • Control by BMS.
How It Works:

The operation of immersed electrode hot steam humidifiers is based on a very simple physical principle. As common drinking water contains a certain quantity of dissolved mineral salts, and is consequently slightly conductive, applying a voltage to metal electrodes immersed in the water creates an electric current that heats the water (Joule effect) until boiling, thus producing steam.
The quantity of steam produced is proportional to the electric current, which is in turn proportional to the water level. This electric current is measured by a current transformer: by varying the level of water using a fill solenoid valve and due to the evaporation process, the current, and consequently steam production, can be modulated. Due to evaporation, the level of water decreases and must therefore be topped up. As the steam produced does not carry mineral salts, the salt concentration in the water and therefore the conductivity increases, and has to be periodically diluted by draining part of it using the drain pump and replacing it with new water.
In addition, scale forms over time and covers part of the cylinder, which must be replaced or cleaned. The principle is simple, however the development of an immersed electrode Carel UE 130 HumiSteam humidifier that ensures safe operation and reliability over time requires careful analysis and extended testing. Compared to electric heater or gas-fired humidifiers, the best immersed electrode humidifiers:
  • are less expensive to purchase;
  • operate with cheap drinking water (not completely demineralised or softened);
  • require periodical replacement (or cleaning) of the cylinder;
  • feature modulation suitable for comfort or industrial applications, without extreme requirements.
CAREL has been manufacturing immersed electrode humidifiers since the 1970’s and can draw benefit from its know-how in the field of electronic controllers: precision control, reliable electronics and sophisticated and complete control software.

The high quality Carel UE 130 HumiSteam Humidification System is your best bet for highly customizable, accurate and reliable humidity in a large home, commercial or industrial spaces. In addition to great products, we offer expert assistance to help you get exactly the right humidifier system for your industrial or commercial application.

We also offer the best discount prices you’ll find anywhere, plus free shipping to anywhere in the Continental U.S. Overseas shipments are possible, but shipping and any other associated charges are the customer’s responsibility.  Call us to customize a UE 130 HumiSteam system to your exact specifications today at 1-800-701-2513. We’re here to help! Also, if you’re interested in a wholesale quote for a bulk multiple unit order give us a call. Additional discounts are available.
This Package Includes (priced with the X-PLUS controller, other controllers available):
1  CAREL UE 130 HUMISTEAM UNIT
1  CAREL X-PLUS INTEGRATED CONTROLLER
1  DUCT INSTALLATION KIT
 (CAN BE IN-ROOM IF DESIRED–CALL FOR QUOTE)
