Description

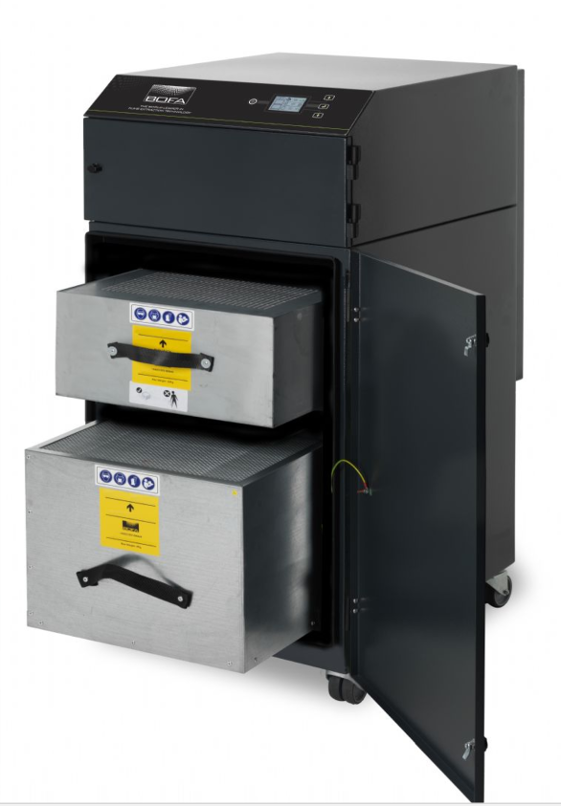

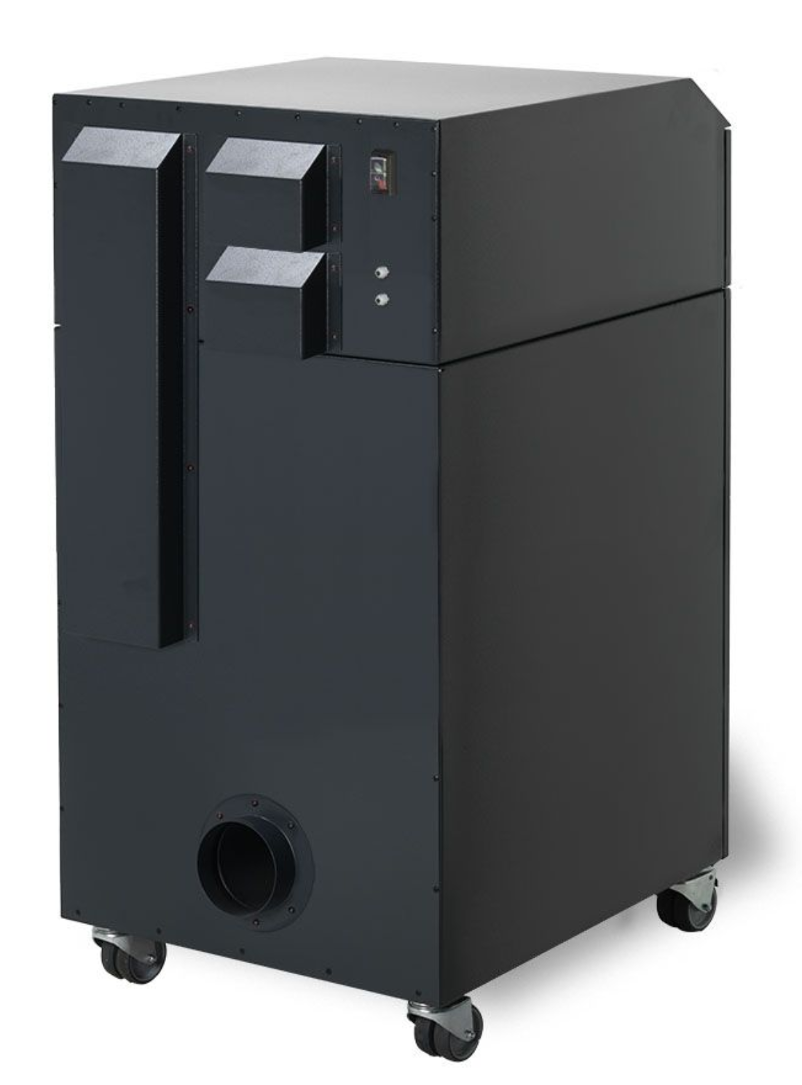

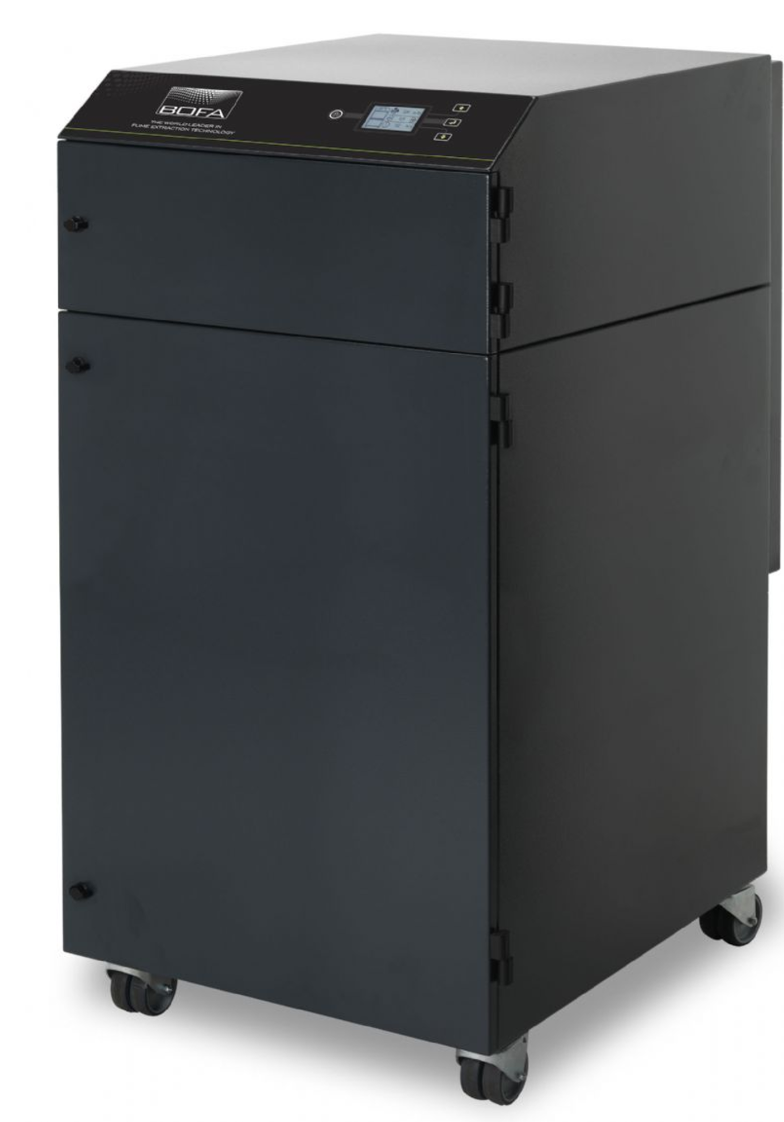

BOFA Advantage AD-500 iQ Laser Fume & Dust Extraction System

A High Quality Portable Fume & Dust Collector Designed for Laser Engraving, Cutting, Etching, Welding, Marking & Related Applications. with an Advanced Long-Lasting HEPA & Special Carbon Filter Scrubber System that Specifically Removes The Chemical Gases, Vapors & VOC’s Created by Lasers. Buy Your AD 500 iQ Here at The Best Possible Cheap Discount Online Sales Price.

• 324 CFM
• Perfect for Bed Sizes up to 36″ x 48″
• Digital flow control system
• Blower with high airflow and pressure
• Low cost replacement filters
• Low noise levels
• Filter condition indicator
• DeepPleat flter technology
• Advanced Carbon Filter Technology – 70 lbs
• Reverse Flow Air Technology
• HEPA Filter Technology
• 17-Point SureCheck Quality Standard
• 2 Year Warranty

• VOC gas sensor (Volatile Organic Compound)
• Filter change / System fail signal
• Remote stop / start interface–turns the extractor on when the laser comes on
• Black powder coat finish standard; Brushed stainless available at extra charge and 6 week lead time.

• Model AD-500 iQ
• Voltage: 230v or 115v 1 PH
• Dimensions (HxWxD) Both 230v and 115v: 1197 x 600 x 790mm or 47.1 x 23.6 x 31.1”
• Cabinet Construction Brushed stainless steel, Powder coated mild steel
• Pressure / Airflow 550m³/hr , 324cfm / 100mbar
• Electrical Data 230v 1ph 50/60Hz Full load current: 9.5 amps / 1.1kw 115v 60/50Hz Full load current: 14.8 amps / 1.1kw
• Noise level For both 230v and 115v, < 60dBA*
• Weight 135kgs 298lbs
• Approvals Ce

• Surface Media Area 30m2 approx
• Filter Media Glass Fibre
• Filter Media Construction 100mm DeepPleat Construction with Webbing Spacers
• Filter Efficiency (95% @ 0.9 microns)

• HEPA Filter Media Glass Fibre
• HEPA Media Construction
• Maxi Pleat Construction with Webbing Spacers
• Filter Housing Zintec Mild Steel
• Treated Activated Carbon 34 kgs (74.8 lbs, with specific blend for laser fumes)
• Filter Efficiency 99.997% @ 0.3 microns

BOFA’s AD 500 iQ high performance laser extraction system combines an extremely large filter capacity with high airflow and pressure rates, making it the ideal choice for heavy duty applications that generate large amounts of particulate and gaseous organic compounds. Now you can be sure that your laser workshop air quality is being addressed properly, with the best filtration available, designed specifically for laser pollutants.

Performance has now been further enhanced with the inclusion of several new features including BOFA’s new iQ Operating System, making the new AD 500 iQ one of the most advanced systems available. The iQ system takes performance and safety parameters to a new level and ensures that maintenance, downtime and ownership costs are kept to a minimum.

New optional features such as the VOC gas sensor (Volatile Organic Compound), Filter change / System fail signal and Remote stop / start interface further enhance workplace safety and ensure the best performance from your fume extractor.   Adding the start stop option ensures that the AD-500 is on whenever the laser unit is on. The VOC sensor option lets you know when filters are full (including the carbon filter)–so you don’t have to wonder or replace filters except when it is needed. These features further reduce liability and filter costs, keeping your profits up and expenses as low as possible.

All BOFA units are kept in stock and available for shipment in 24-48 hours. Order yours today here at a discount online sales price and enjoy a safer, more enjoyable, lower-cost laser workshop!

Why Choose BOFA

DeepPleat particle filter technology greatly extends particle filter life and saves you money–here’s why:

ACF Advanced Carbon Filter Technology

All BOFA carbon filtration systems include a unique phosphoric-base activated carbon that assures safe capture and removal of hazardous fumes associated with lasers that normal activated carbon don’t remove very well–and could put you and employees at risk.

Reverse Flow Air Technology

BOFA’s unique Reverse Flow Air technology feature causes a fall in velocity and air direction change. Larger particulate falls out of the airstream into the filters drop out chamber. With less particulate entering the filter media the filter life is significantly increased. Contaminated air entering the drop out chamber is pulled vertically through the filters.

BOFA’s 17 Step SureCheck System Ensures Quality

In addition to higher performance, better, longer lasting filters and lower maintenance, BOFA provides the ultimate in value by ensuring quality and long life by sending each and every product through their rigorous 17 step SureCheck quality control system.  So if you want the very best, light duty fume and dust extraction system designed specifically to work with laser systems, order your  AD-350 Laser Fume & Dust Extracation System today for years of trouble-free dependable, consistent performance.

Save Money Shopping Online, and Don’t Get Ripped Off

There are not many official online retailers of BOFA Americas laser air filtration products and unfortunately the internet is full of scams. As a general rule of thumb, if the deal seems too good to be true, it probably is. Cheap cut rate online deals often end up being a used or refurbished unit, which do not come with BOFA Americas top rated 10 year warranties. Or even worse, you may end up buying a cheap discount air cleaner that doesn’t have the energy efficiency, features or proven air cleaning power provided by top-rated BOFA Americas air filtration systems.

Why Buying From Us is Better Than Buying Direct!

When you buy your money and energy saving BOFA Americas air filtration products from us, you get a brand new unit, at the best possible price, with BOFA Americas’s amazing 2 year warranty. Our innovative partnership with BOFA Americas allows us to ship directly from their warehouse, which cuts out the middle man and eliminates the high operating costs of traditional brick and mortar big box stores. These savings get passed directly to you, allowing us to offer brand new allergy and asthma symptom-eliminating BOFA Americas air purifiers and filters at the best possible everyday cheap discount online sales prices. And buying from us is definitely better than direct.  If you buy direct, you’ll have to pay high shipping. Buying from us, however, you always get fast free or low flat rate ground shipping as our thanks to you for shopping with us.

If you have any questions give us a call or send us an email and one of indoor air purification experts will be happy to help.
