Description

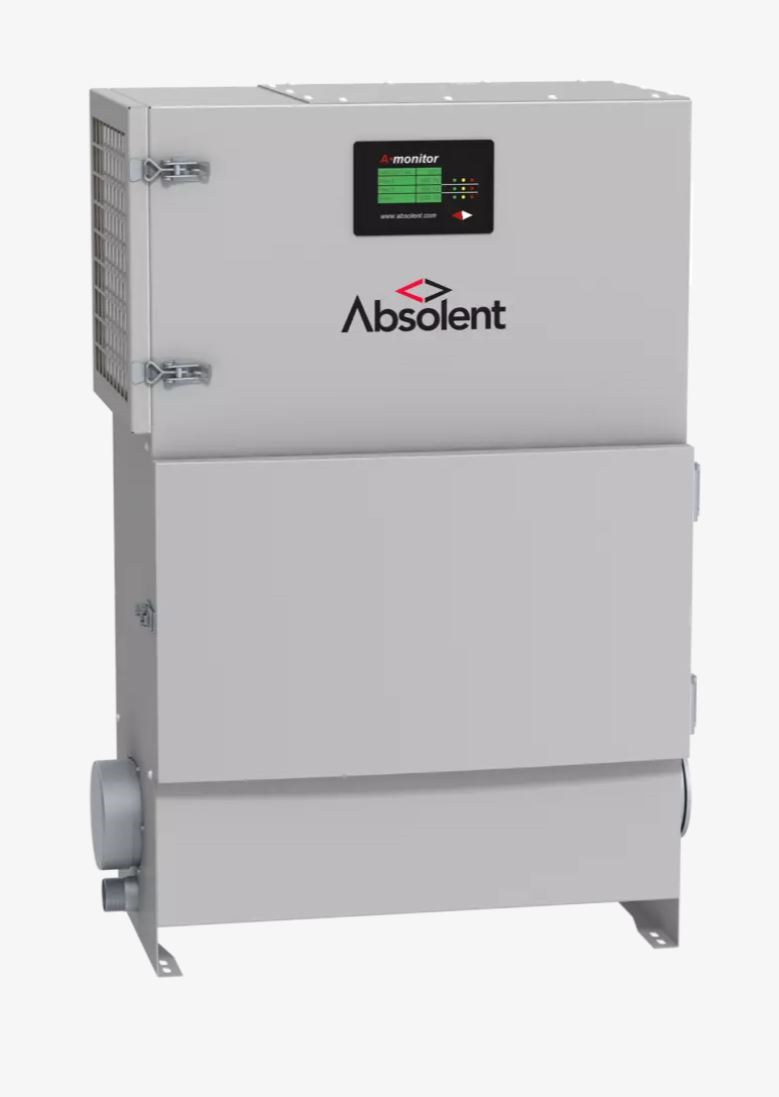

Absolent Amist 6C Oil Mist and Vapor Elimination Air Cleaner

The Absolent Amist 6C Commercial Oil Mist Removal System provides the highest possible oil mist and vapor collecting efficiency and lowest maintenance. The filtered air becomes so clean that it usually can be returned to the premises. This means less loss of energy and the most balanced oil mist ventilation system available.

Superior Filtration: Absolent is one of few companies in this line of business that has specialized in the filtration of air containing wet particles. This has given us the opportunity to develop a filter cassette that offers a long useful life with consistently high separation efficiency. The oil mist removing filtering process occurs in two stages. The first stage consists of the self-draining Absolent filter, in which up to 90% of the oil mist is arrested. The return oil is collected at the bottom of the filter for recycling. Thanks to the continuous draining of the filter cassettes, the commercial air filtration unit can be operated without interruptions.  The second stage consists of a H13 oil mist extractor is a true dust removing and particle collecting HEPA filter, which has a guaranteed and consistent collecting efficiency of 99.97% arresting 0.3μm dia. particles. The Amist 6C has an electronic pressure gauge, A•monitor, which shows the pressure drop over the different filter stages and indicates when a filter cassette is to be changed.

Extremely low maintenance: Absolent filter units can usually run for at least one year without requiring a filter change. In the majority of applications, Absolent filter cassettes are washable**. This results in a low total cost of ownership.

Uses & Benefits:

• Superior Oil Mist Filtration – only 1/2 teaspoon oil remains, and clean air!
• Extremely Low Maintenance with Cleanable Filter Cassettes
• 8760 Running Hours-Our unique filter cassettes capture all particles – giving you 1 year of maintenance free operation.
• Low Noise Operation
• Small Footprint
• Best For: Grinding (cutting fluid emulsion), Turning (cutting fluid emulsion), Milling (cutting fluid emulsion), Electrical discharge machining, Machining using neat oil and moderate loads

Features:

• Washable Oil Mist Collection Filter Cassette
• H13 HEPA Air Filter
• Low Noise High Airflow Fan for Fast Oil Mist Removal
• Various Duct Connections Available
• 2 Year Machine Warranty

Specifications:

• Max permissible air volume [cfm] 355

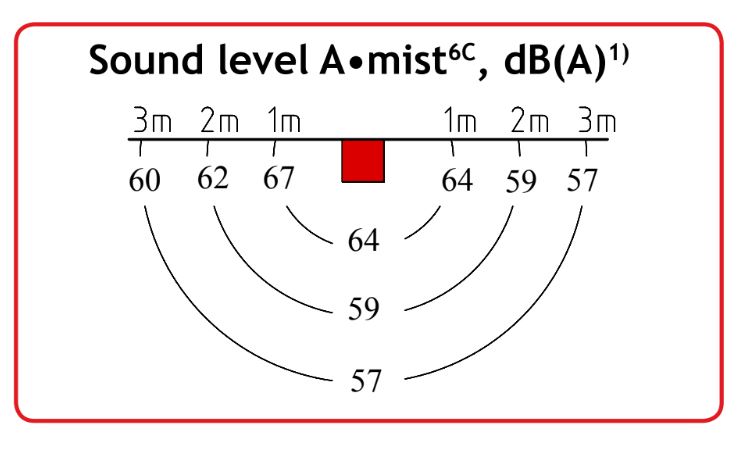

• Sound level, 1m in front of filter unit1) [dB(A)] 65
• Weight (dry filters) [lbs] 143
• Dimensions: 24.4W x 39.4H x 18.8D inches
• Filter area, filter 1 (Absolent filter) [ft2] 83
• Filter area filter 2 (HEPA filter) [ft2] 73
• Fan / Motor output [hp] 0.85
• Power supply [A] 1.26
• Rated current (3-Phase) [V] 440-480

• Manual or protective motor contactor (for automatic or external start)
• Duct connection for various types of steel or plastic ductwork available on the market
• Water trap for various connections of the return oil pipe
• Pressure monitor, for external alarm or alarm indication with LED
• Special colors (contact us for more information at 800-701-2513)
